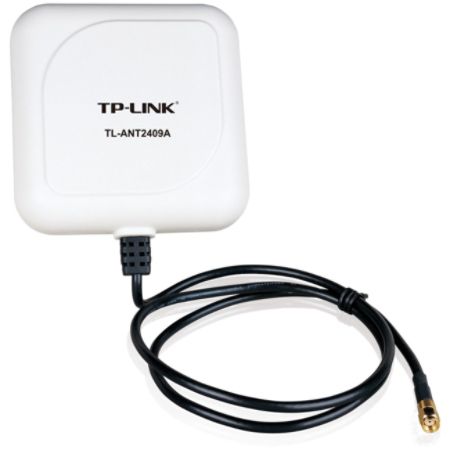

TP-LINK TL-ANT2409A 2.4GHz 9dBi Directional Antenna,802.11n/b/g, RP-SMA Male connector, 1m/3ft cable Item # 160582
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
160582
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
What This Product Does
Directional Antenna TL-ANT2409A operates in the 2.4GHz band and provides 9dBi directional operation, which largely extends the wireless range and delivers much better wireless performance. The antenna offers the RP-SMA female connector guaranteeing wider compatibility with most of the wireless equipments.
Enjoy the benefits of wireless connectivity at greater distances and throughput throughout your indoor wireless zone. No configuration or installation software required .
Easy To Use
Installation of the TL-ANT2409A is simple and straight forward. It is compatible with most wireless devices (Access Points, Routers, Bridges and Network Adapters) on the market with removable external antennas.
Product Details
| Item # | 160582 |
| Manufacturer # | GD6411 |
| height | 1.6 in |
| Vertical Beamwidth | 75° |
| Additional Information | VSWR: 1.92 : 1 Max; Mounting (Wall/Pole); Cable Length: 1m; Half-Power Beamwidth:Horizontal: 60°; Vertical: 76° |
| Certifications & Standards | IEEE Standards: 802.11n; 802.11g; 802.11b |
| Directivity | Directional |
| width | 4.7 in |
| package contents | 2.4GHz 9dBi Directional Antenna; Installation Mounting Kits; User Guide |
| depth | 4.7 in |
| Product Name | 2.4GHz 9dBi Directional Antenna |
| Antenna Gain | 9 dBi |
| manufacturer | TP-LINK Technologies Co., Ltd |
| Number of Connectors | 1 |
| Compatibility | TP-Link Wireless AC1750 Dual Band Gigabit Cloud Router |
| Application/Usage | Wireless Data Network; Outdoor |
| Polarization | Linear Vertical |
| brand name | TP-LINK |
| USB | No |
| frequency | 2.40 GHz |
| length | 3.28 ft. |
| Frequency Band Type | UHF |
| impedance | 50 Ohm |
| Application | Indoor, outdoor |
| connector type | RP-SMA |
| Voltage Standing Wave Ratio (VSWR) | 1.92:1 |
| form factor | Pole/Wall |
| warranty length | 1-year limited |
| model name | TL-ANT2409A |
| Horizontal Beamwidth | 60° |
| Frequency Range | 2.4 - 2.5 GHz |
| Show More ▾ |
Customer Reviews
From the Manufacturer|
Overview
-
What This Product Does
Directional Antenna TL-ANT2409A operates in the 2.4GHz band and provides 9dBi directional operation, which largely extends the wireless range and delivers much better wireless performance. The antenna offers the RP-SMA male connector guaranteeing wider compatibility with most of the wireless equipments.
Enjoy the benefits of wireless connectivity at greater distances and throughput throughout your indoor wireless zone. No configuration or installation software required .
-
Easy To Use
Installation of the TL-ANT2409A is simple and straight forward. It is compatible with most wireless devices (Access Points, Routers, Bridges and Network Adapters) on the market with removable external antennas.
See More:
Features
- Compliant with 802.11n/b/g (2.4GHz)
- 9dBi signal gain
- RP-SMA Male connector
- 100cm(39.4 in) low loss CFD-200 cable
Specifications
| ANTENNA | |
|---|---|
| Frequency | 2.4GHz |
| Gain | 9dBi |
| VSWR(MAX.) | 1.5:1 |
| HPBW/H( °) | 60 |
| HPBW/V( °) | 76 |
| Polarization | Linear; Vertical |
| Type | Directional |
| Connector Type | RP-SMA Male(Plug) |
| Extended Cable/Length | CFD-200 ; 100cm(39.4 in) |
| Mounting | Pole Mount/Wall Mount |
| Application | Indoor |
| Approximate Range at 1/11/54Mbps | 1.10miles/0.62miles/0.087miles (1.77km/1km/140m) |
| Operating Temp. | -20°C ~ +65 °C |
| Storage Temp. | -30°C~ +75°C |
| Optional Accessory | TL-ANT24EC3S TL-ANT24EC5S |
Package Content
- 9dBi Panel Directional Antenna
- Installation mounting kits
- User Guide
Datasheet
-
TL-ANT2409A Datasheet
TL-ANT2409A Datasheet - opens PDF
PDF, 895K, 2 pages
